Neither the 3-Button nor the Thin Pen support pen rotation natively.
There is good news -
If you are an Adobe PS user and you are using a brush that is not round, you can use the brush rotation that PS has built into your brush using your Quick Keys.
Video Link: https://youtu.be/UZr1qpJhI1k

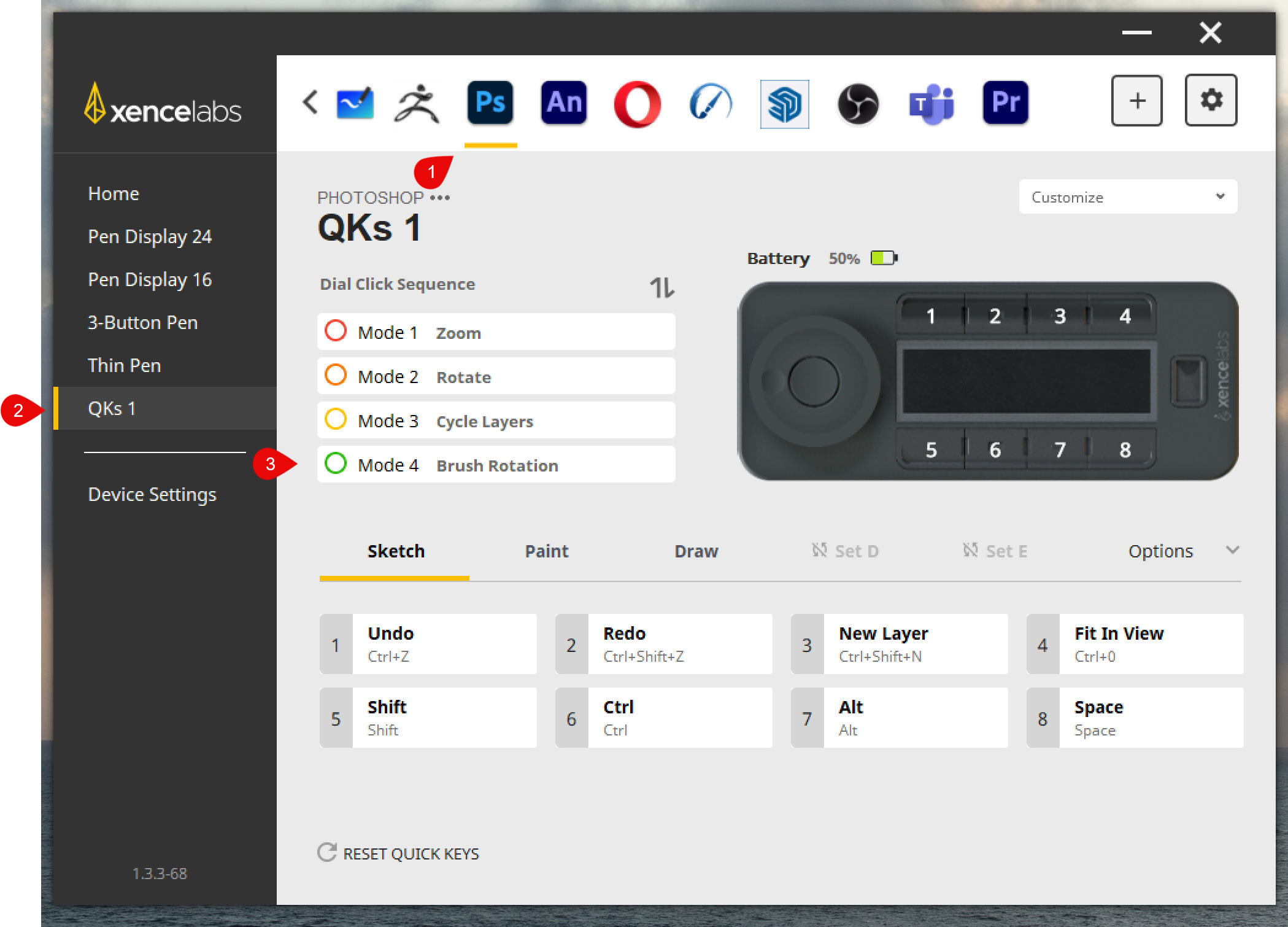

With the Settings panel open. [1] Click the PS icon in the Application row. The yellow line under it tells you that any custom actions you create now will only affect PS when it is running. [2] Then select the Quick Keys from the left navigation column. [3] You'll need to select the dial mode or position you'd like to assign the brush rotation. I have selected Mode 4. |  |

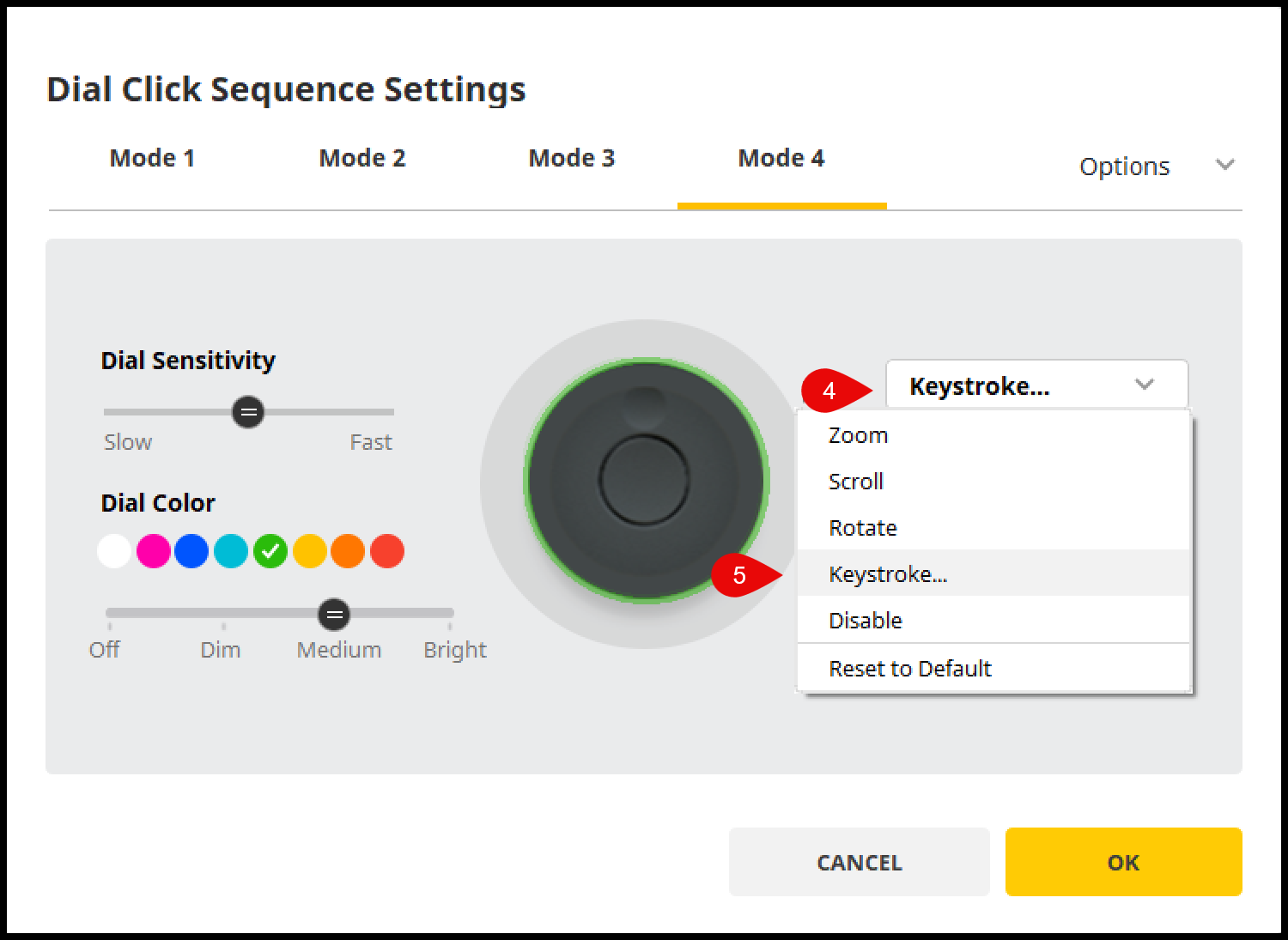

[4] Then, drop down the menu. [5] Select Keystroke. |  |

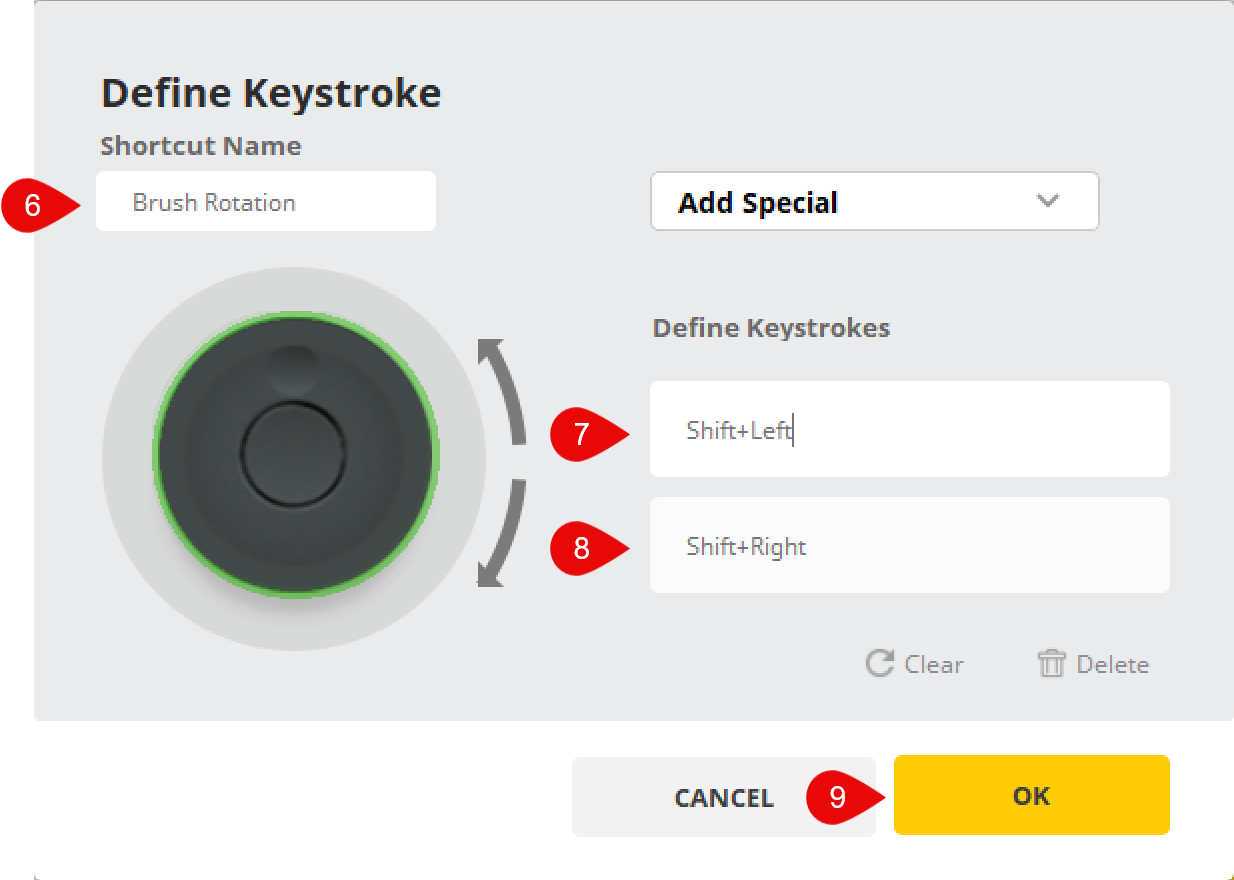

[6] Name your new setting - I have named mine Brush Rotation. [7] In the Define Keystroke top field, press Shift+Left arrow. [8] In the lower field, press the Shift+Right arrow. These commands are the same for both Windows and Macs. [9] Then click OK, and you are good to go. |  |
If you would like to reach out to Customer Care, you can email us at CustomerCare@Xencelabs.com
